The Need for micro Payments

I will dive into this more in some other article but to quickly highlight on this. With mass adoption and digital assets/information/services increasing in value over time there is a need for fast/native monetization into this products. Also these services and information have a model of pay as you go and generally requires a small amount of payment. To build this type of payment model we have to reduce the payment cost/time for the user and the merchant. Some examples can be newsletter, twitch streams.

Payment Channel

In blockchain it cost a certain transaction fees to put a transaction on the blockchain. Also it is slow for example in bitcoin it takes 10mins for a new block to come up. Using bitcoin transaction for paying 1$ every 5 minute between you and some streaming,gaming service will cost you more in fees and will take time.

To solve this we can create a payment channel where you lock your funds for some duration by publishing a transaction on blockchain. Now both parties know the amount is locked once locked the sender can give reciver a transaction off chain relasing some amount from the locked transaction to the reciever.

1 Way Channel

The gist of 1 way transaction is that you lock the sender transaction for a given period of time. Then you share signed transaction sending from locked transaction output to the reciver off chain.

You can define this as 3 function

Lock(amount,sender)

Sender locks his/her amount with an refund expiry if no action taken(100 block)

Send(signed_transaction) (off chain)

sender sends the signed transaction to reciver where amount <=lock_amount. This is sent Off chain

Collect(signed_transaction)

reciver relays one of the transaction to the blockchain he/she got from sender off chain and

Cancel()

Once the lock time expires the sender gets his money back if collect hasn’t been called

Bitcoin Implementation

Locking and Cancel(refund)

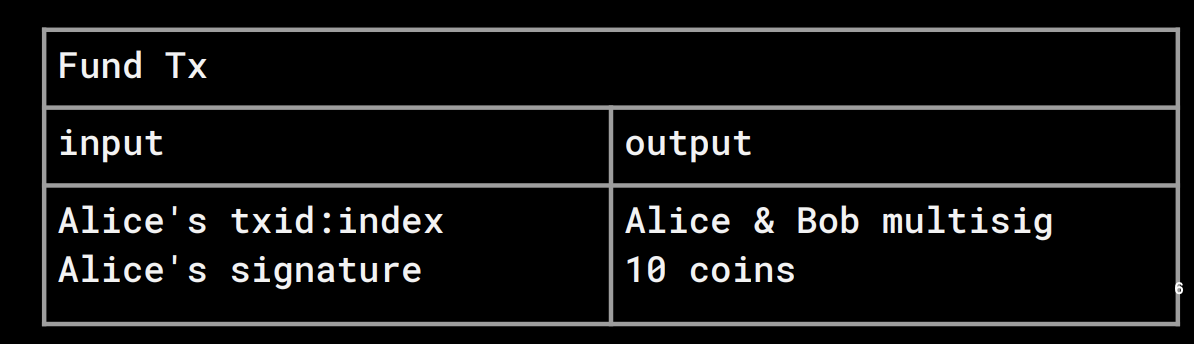

There is a 2 step process to Lock a transaction, the sender create a multi-sig transaction which between reciver and sender, Lets call the transaction Id for this transaction TxId_multi

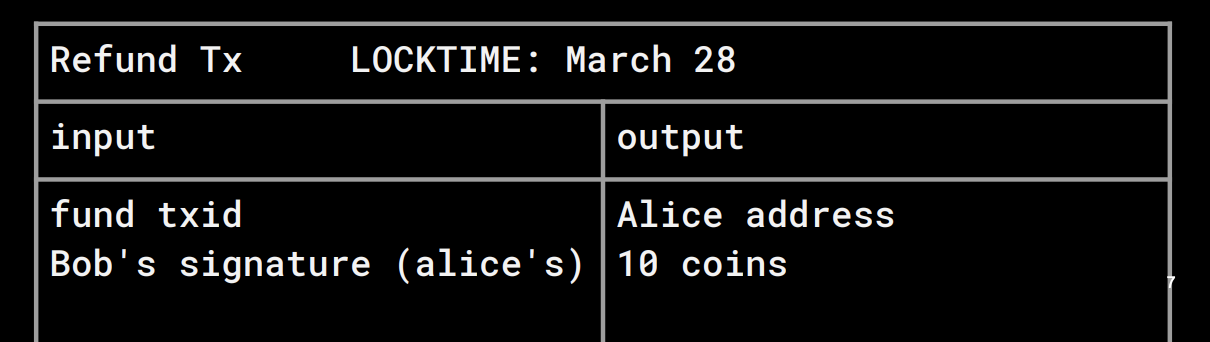

but before it relays the transaction to the blockchain it asks the reciver to sign txId_multi and sending the amount back to alice but with a lock time of lets say week, This is bascially a refund transaction.

So sender has locked his/her money which requires both parties signature and will get a total refund if nothing happens in a week

If we see from above function we have implemented Lock and Cancel with a time period of a week.

Send and Collect

For collect Sender simply sends a transaction spending from the relayed transaction output and giving few coins to the reciver and keeping the change

This is simillar to refund transaction expect the sender signs it and sends it to receiver, where he can sign it as well and collect the money.

Note in Refund transaction it is slightly opposite that the reciver sends his/her signature and gives it to sender where as here it is sender sending the signature

Ethereum Implementation

Locking and Cancel

We create a smart contract which takes the sender tokens when creating contract and allows the contract to self destruct after the lock period time and send the money back to sender

reciver can see the contract and know that the money is locked

Send and Collect

Sender sends his/her signed transaction with some amount tx <- sign(amount,sender_pk) Sends the tx off chain to the reciver

Collect function expects a transaction sees the amount and sees if the signer is sender then sends the funds to the caller of Collect function

reciver can call Collect function passing the signed transaction by sender.

// SPDX-License-Identifier: MIT
pragma solidity ^0.8.20;

import "github.com/OpenZeppelin/openzeppelin-contracts/blob/release-v4.5/contracts/utils/cryptography/ECDSA.sol";
import "github.com/OpenZeppelin/openzeppelin-contracts/blob/release-v4.5/contracts/security/ReentrancyGuard.sol";

contract UniDirectionalPaymentChannel is ReentrancyGuard {
    using ECDSA for bytes32;

    address payable public sender;
    address payable public receiver;

    uint private constant DURATION = 7 * 24 * 60 * 60;
    uint public expiresAt;

    constructor(address payable _receiver) payable {
        require(_receiver != address(0), "receiver = zero address");
        sender = payable(msg.sender);
        receiver = _receiver;
        expiresAt = block.timestamp + DURATION;
    }

    function _getHash(uint _amount) private view returns (bytes32) {
        // NOTE: sign with address of this contract to protect agains
        // replay attack on other contracts
        return keccak256(abi.encodePacked(address(this), _amount));
    }

    function getHash(uint _amount) external view returns (bytes32) {
        return _getHash(_amount);
    }

    function _getEthSignedHash(uint _amount) private view returns (bytes32) {
        return _getHash(_amount).toEthSignedMessageHash();
    }

    function getEthSignedHash(uint _amount) external view returns (bytes32) {
        return _getEthSignedHash(_amount);
    }

    function _verify(uint _amount, bytes memory _sig) private view returns (bool) {
        return _getEthSignedHash(_amount).recover(_sig) == sender;
    }

    function verify(uint _amount, bytes memory _sig) external view returns (bool) {
        return _verify(_amount, _sig);
    }

    function close(uint _amount, bytes memory _sig) external nonReentrant {
        require(msg.sender == receiver, "!receiver");
        require(_verify(_amount, _sig), "invalid sig");

        (bool sent, ) = receiver.call{value: _amount}("");
        require(sent, "Failed to send Ether");
        selfdestruct(sender);
    }

    function cancel() external {
        require(msg.sender == sender, "!sender");
        require(block.timestamp >= expiresAt, "!expired");
        selfdestruct(sender);
    }
}

Bi Directional Payment Channel

The problem with one way channel is that once a transaction is shared off-chain there is no real way of saying oh let’s cancel this transaction.

To do this we create a form of revokable transactions on both parties, we have 2 set of transaction owned by each party, each party can revoke the transaction. Once both of them have revoked the transaction a new transaction can be formed.

So the basic idea is you create a fund transaction in 2-2 multi sig and before you push it to blockchain you share 2 commitment transaction off-chain with each other which spends from the fund output. The commitment transaction is a revokable transaction designed with an expiry time where they both get back the money back after the expiry period.

Funding Transaction

An initial channel Funding Transaction is created whereby one or both channel counterparties fund the inputs of this transaction. Both parties create the inputs and outputs for this transaction but do not sign the transaction.

The output for this Funding Transaction is a single 2-of-2 multisignature script with both participants in this channel, henceforth named Alice and Bob. Both participants do not exchange signatures for the Funding Transaction until they have created spends from this 2-of-2 output refunding the original amount back to its respective funders. The purpose of not signing the transaction allows for one to spend from a transaction which does not yet exist.

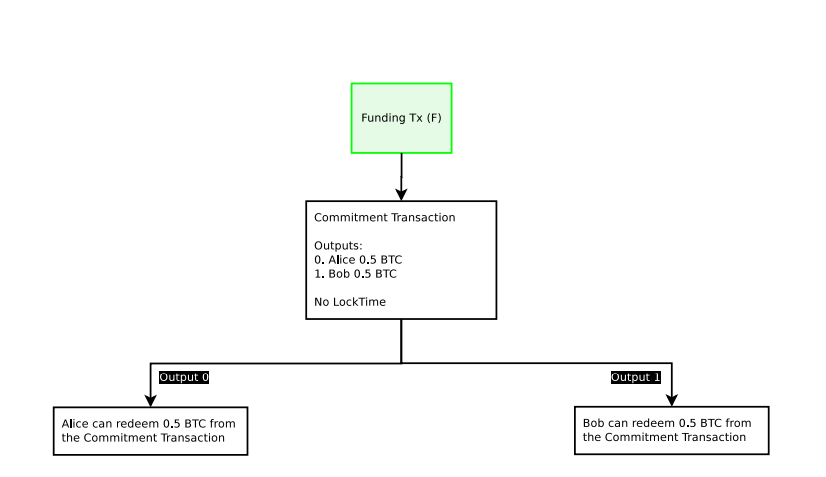

In short the idea is to create a funding transaction and two commitment transaction spending from that transaction which allows both parties to redeem there funds back from the funding transaction. Note the commitment transaction are exchanged off-chain and aggreed to first before the funding transaction is relayed to blockchain

Adding Revokability on both parties

Once the commitment transaction is shared we want a way to generate a new set of transactions that gives more money to reciever. The sender can create such a transaction off-chain and send to the reciever, the problem here is that the sender can push the commitment transaction(older transaction) on blockchain cause it still is valid. So to ensure the payment is done reciever must have some proof that the old transaction held by the sender is invalid.

This construction, a Revocable Sequence Maturity Contract (RSMC), creates two paths, with very specific contract terms. The contract terms are:

1. All parties pay into a contract with an output enforcing this contract
2. Both parties may agree to send funds to some contract, with some waiting period (1000 confirmations in our example script). This is the revocable output balance.
3. One or both parties may elect to not broadcast (enforce) the payouts until some future date; either party may redeem the funds after the waiting period at any time.
4. If neither party has broadcast this transaction (redeemed the funds), they may revoke the above payouts if and only if both parties agree to do so by placing in a new payout term in a superseding transaction payout. The new transaction payout can be immediately redeemed after the contract is disclosed to the world (broadcast on the blockchain).
5. In the event that the contract is disclosed and the new payout structure is not redeemed, the prior revoked payout terms may be redeemed by either party (so it is the responsibility of either party to enforce the new terms).

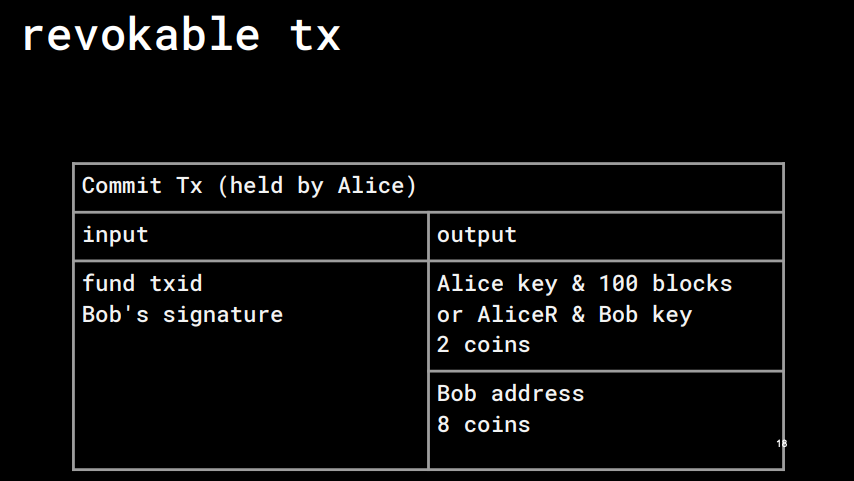

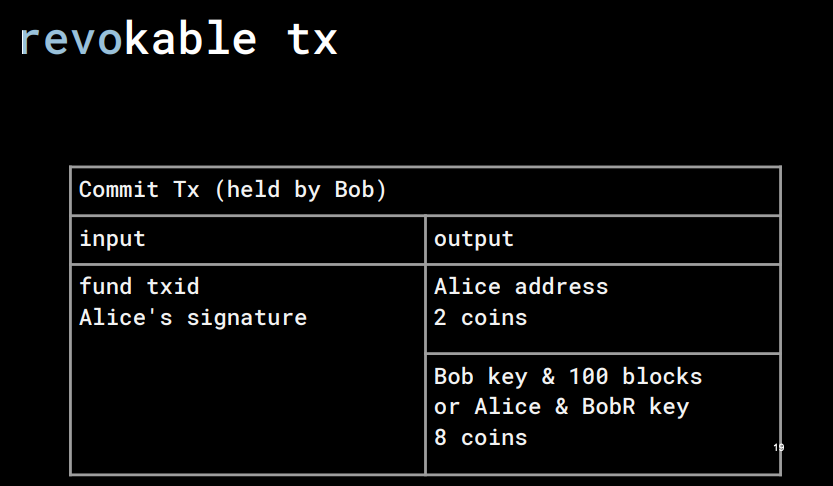

The way revokable transaction works is that the output is valid to the orignator address after 100 blocks confirmation or to the address of holder_public_key + orignator_rev_public*. So by default the transaction is going to the orignator but if he/she wants to revoke it they share the private key of orignator_rev_public_key which allows holder(reciver) to take this money hence revoking the claim of money by orignator(sender) cause the holder can claim this before 100 blocks confirmation and move it by creating another transaction.

Now whenever balance is needed to be updated between the 2 parties, the sender creates a new transaction the reciver acknowledges it by sending the corresponding transaction for the new updated balance and also revoking the previous transaction and finally sender revokes the previous transaction.

Another way to look at Bi Directional Payment channel

One way to think about is that the parties agree on both their balances. So they lock the money and set balance at the time of contract creation.

Now to update the balances both parties can submit claim to the blockchain, Let’s say Alice submits the claim saying she gets 0.2 eth more, we update the recivables and increase the claim period so that Bob can also submit his claim. If the claim period expires we assume he didn’t get money and let withdraw happen.

Our Claim function checks wether the transaction is the newest one or not. If not it disregards it.

What happens when there is a dispute

How do we check if the claimed transaction is latest one if 2 differnet transaction are submited? Lets take an example

Initial State:

Alice and Bob each deposit 10 ETH into the payment channel contract. The contract records: Alice’s balance = 10 ETH, Bob’s balance = 10 ETH. First Transaction:

Alice pays Bob 1 ETH. They both sign a new balance record and share with each other: Alice’s balance = 9 ETH, Bob’s balance = 11 ETH. Second Transaction:

Bob pays Alice 0.5 ETH. New balance record (signed): Alice’s balance = 9.5 ETH, Bob’s balance = 10.5 ETH.

Now Alice submits the final transaction that is 9.5 ETH to the claim function the claim function gives some time to bob to submit a claim as well before closing the channel. Now bob’s tries to cheat and submit the First transaction to the claim function where Alice gets 9 and Bob 11 instead of 10.5. The First transaction has a lower nonce than the second transaction so it gets rejected.

Also the contract has a normal expiry time in case if no transaction is exchanged the inital balances is refunded after 100 blocks to respective party

I will add the solidity code for this soon.

Hashed Timelock contracts (HTLCs)

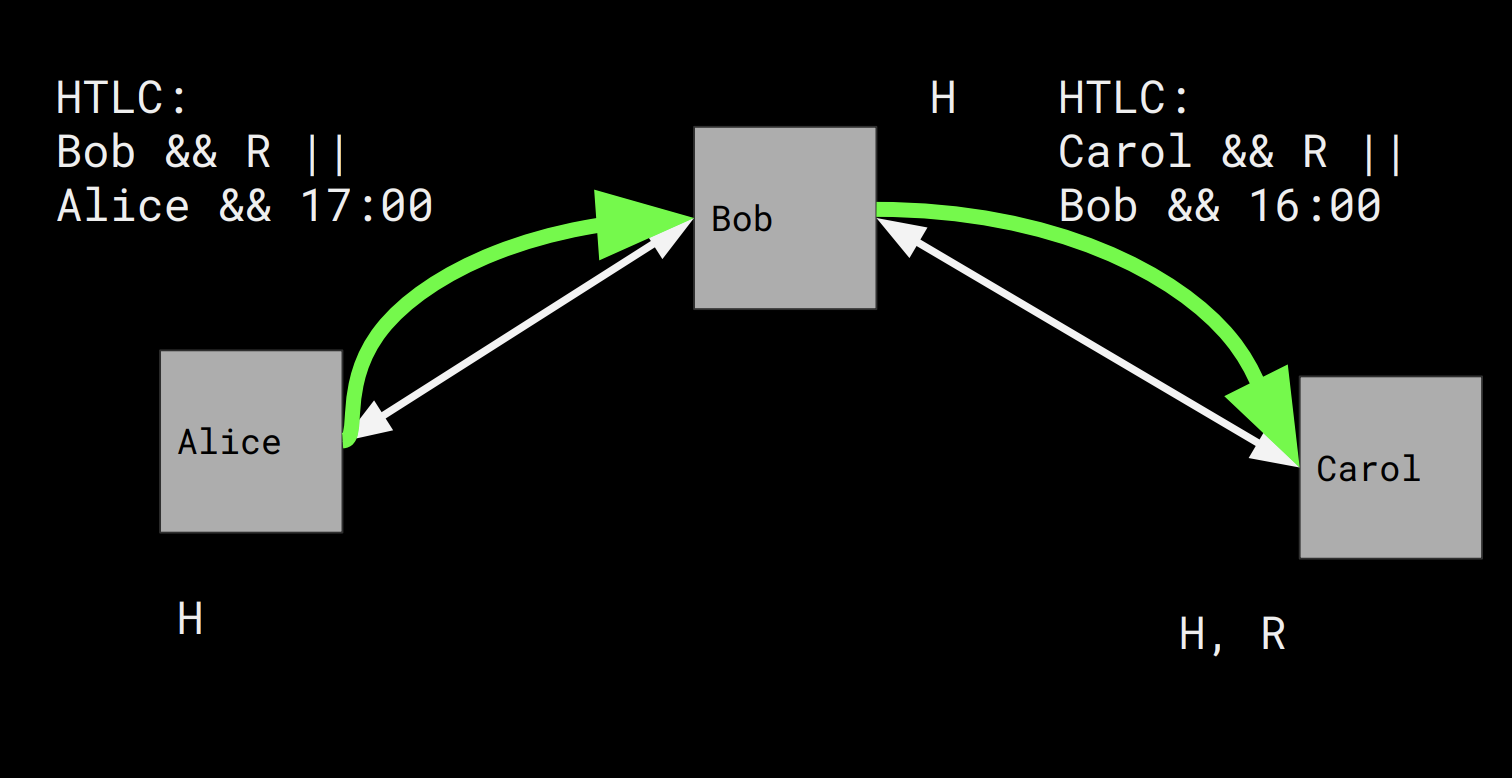

Let’s say you want to make the payment to multiple people, opening multiple direct payment channels is costly, But there might be an indirect path i.e if you want to pay to carol, bob and carol have a payment channel between them & you and bob have a payment channel as well. You can route your payment to carol through bob.

To do this you share the transaction which can be unlocked with a pre-image that only carol knows Bob gets your money if he knows the pre-image secret and bob creates another transaction where carol gets bob’s money if she knows preimage’s secret

An HTLC is also a channel contract with one’s counterparty which is enforcible via the blockchain. The counterparties in a channel agree to the following terms for a Hashed Timelock Contract:

1. If Bob can produce to Alice an unknown 20-byte random input data R from a known hash H, within three days, then Alice will settle the contract by paying Bob 0.1 BTC.
2. If three days have elapsed, then the above clause is null and void and the clearing process is invalidated, both parties must not attempt to settle and claim payment after three days. 30
3. Either party may (and should) pay out according to the terms of this contract in any method of the participants choosing and close out this contract early so long as both participants in this contract agree.
4. Violation of the above terms will incur a maximum penalty of the funds locked up in this contract, to be paid to the non-violating counterparty as a fidelity bond.

Further

State Channels

In Ethereum the simillar concept can be applied to the state as well, maybe I will dive in on this someday State Channels

Cross Chain Swaps

HTLCs can connect two different blockchain, there is no requirnment that the two connected paths on HLTCs have to be on the same blockchain.

Reference

I took reference from the lightning network paper and lecture by one of the authors

For Uni Directional payment channel
